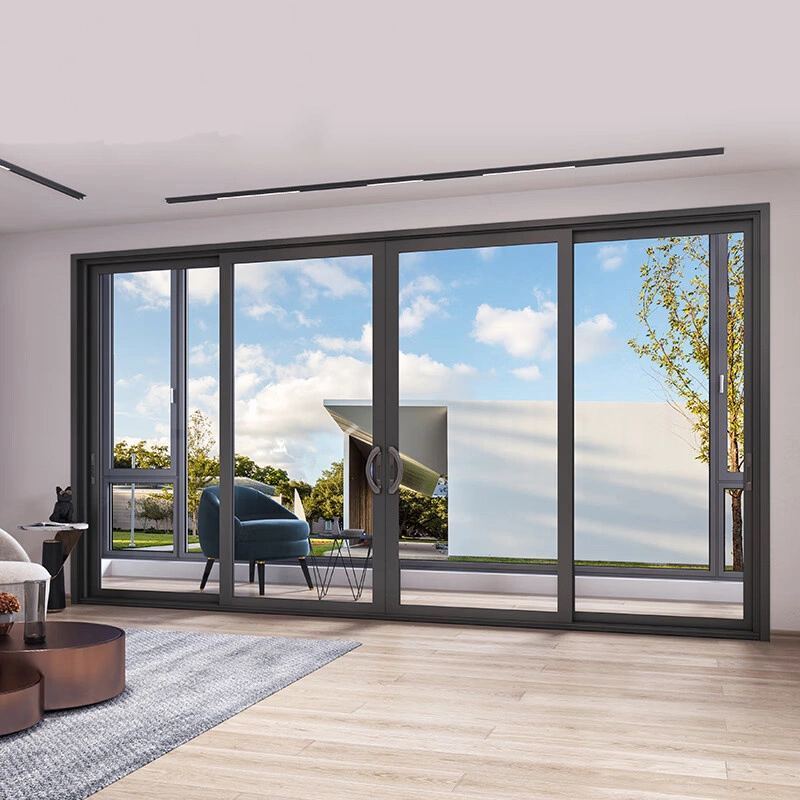

Sliding Aluminum Full View Door Sturdy Frame For Residential
Aluminum Full View Doors are designed to maximize visibility, natural light, and architectural elegance through ultra-slim aluminum frames and large glass panels.
Specific parameters
| Frame Design | Slim / Minimal Frame |
| Panel Configuration | 2 / 3 / 4 / Multi-Panel (Customizable) |
| Opening Style | Sliding |
| Glass Options | Tempered Glass、Double Glazed Glass、Laminated Glass、Low-E Glass (Optional) |
| Profile Thickness | Customizable (Slim Frame Design) |
Product Features
● Smooth pushing and pulling, high watertightness, easy maintenance, and suspended rail.
● Suitable door types: door width 1000-3700mm, door height 1000-6000mm;
● Double-wheel structure design with upper pulley: can be front-mounted or rear-mounted, tightened with a top screw, and the upper wheel is adjustable.
● The sliding wheel structure design features double-row load-bearing wheels and double-row guide wheels, with a single wheel bearing a load of 170 kg.
● The top and bottom rails are connected to the side seals at a 45-degree angle, and the joint surface is coated with adhesive to prevent water leakage;
● The top and bottom edges are joined at a 90-degree angle to the frame, with the mortise and tenon joints on both sides interlocking with the frame; the door panel has high stability.
● Invisible door frames are attached to the edge banding and top track surface, and are finished with ceramic tiles to conceal the outer frame.
● Intelligent electric design, featuring a professional intelligent upper rail, enabling voice-controlled door movement and locking;
● Pre-install the bottom rail before laying the tiles, ensuring the bottom rail is flush with the tiled floor.
● Insulating tempered glass, available in sizes such as 5+30A+5; 6+27A+6; 8+24A+8; 10+20A+10; 12+15A+12, etc.
● Door glass, double-sided silicone sealant applied; double-track double-opening, 5 square meters, 12 kg of sealant required.
